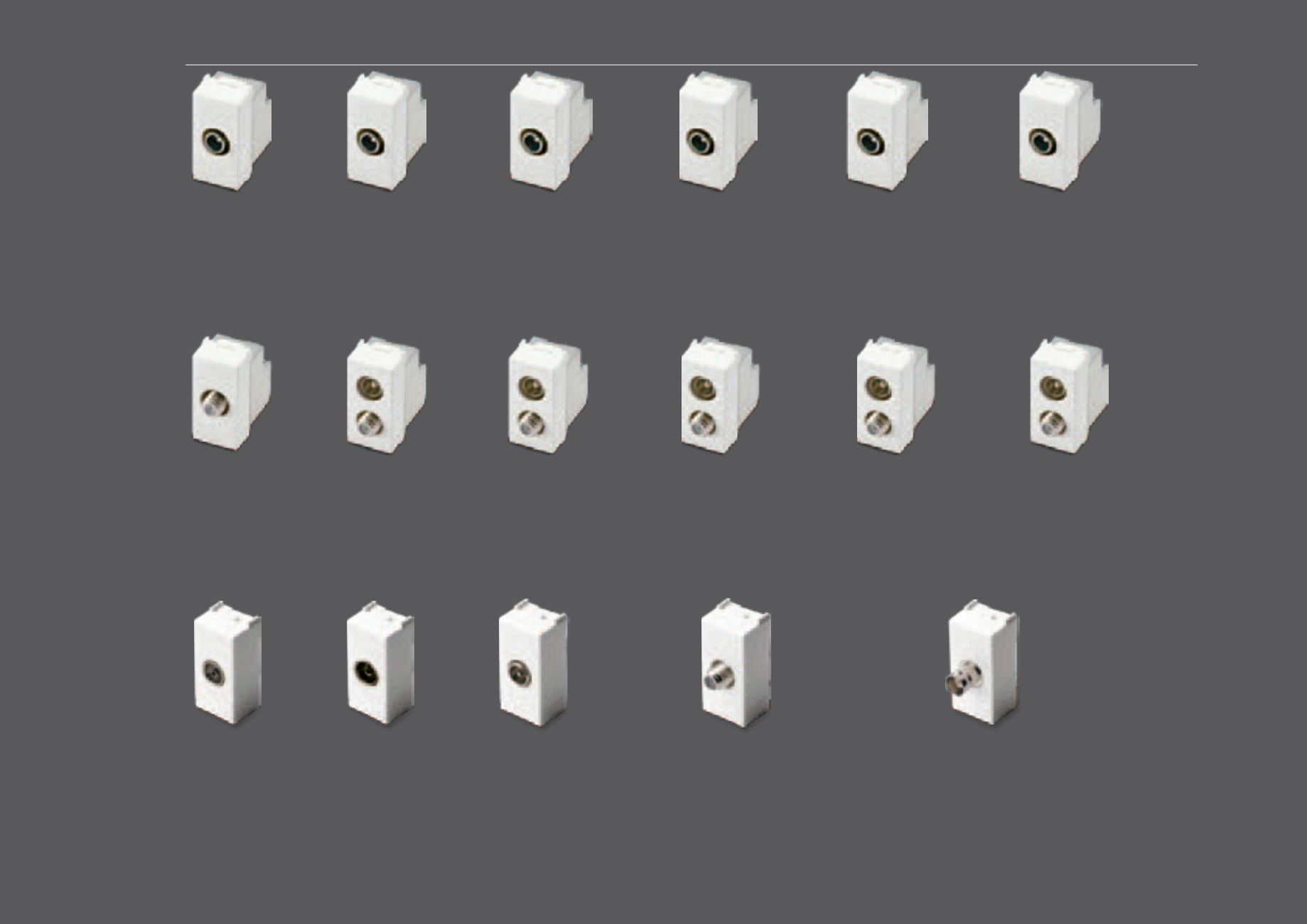

TV & SAT SOCKET OUTLETS /
PRESE TV & SAT /
TOMAS DE TV/SAT
Coaxial TV/RD/SAT 5-2400
Mhz socket outlet, direct
connection, with IEC 60169-2
male connector
FDBS-21270-D
FDBS-21270-7
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, direct connection,
with IEC 60169-2 male connector,
allows DC current passage
Presa coassiale IEC Maschio
passante dB 7
Toma coaxial IEC Macho de
paso dB 7
FDBS-21270-10
Coaxial TV/RD/SAT 5-2400
Mhz socket outlet, through-line
connection, with IEC 60169-2
male connector, 7db attenuation
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line
connection, with IEC 60169-2
male connector, 10db attenuation
FDBS-21270-14
FDBS-21270-18
Coaxial TV/RD/SAT 5-2400
Mhz socket outlet, through-line
connection, with IEC 60169-2
male connector, 14db attenuation
FDBS-21270-DC
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line connection,
with IEC 60169-2 male connector,
18db attenuation
Coaxial TV/RD/SAT 5-2400
Mhz socket outlet, through-
line connection, with IEC
60169-24 female connector
FDBS-21274-DC
FDBS-21277-D
Coaxial TV/RD/ SAT 5-2400
Mhz socket outlet, direct
connection, with 2 IEC 60169-2
male and female connector
FDBS-21277-7
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line connection,
with 2 IEC 60169-2 male and female
connector, 7db attenuation
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line connection,
with 2 IEC 60169-2 male and
female connector, 10db attenuation
FDBS-21277-10
FDBS-21277-14
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line connection,
with 2 IEC 60169-2 male and female
connector, 14db attenuation
FDBS-21277-18
Coaxial TV/RD/SAT 5-2400 Mhz
socket outlet, through-line connection,
with 2 IEC 60169-2 male and female
connector, 18db attenuation
Coaxial 9,5 mm TV socket
outlet, direct connection
FDBS-21254
FDBS-21255
Coaxial 9,5 mm TV socket
outlet, through-line connection
FDBS-21265
Coaxial TV socket outlet, direct
connection, IEC 60169-2 male connector
Coaxial TV/SAT socket outlet, direct
connection, IEC 60169-24 female connector
FDBS-21266
FDBS-21267
Coaxial socket outlet, direct
connection, BNC female connector
SINGLE MODULE
Presa coassiale IEC Maschio
passante dB 10
Toma coaxial
IEC Macho
de
paso
dB 10
Presa coassiale IEC Maschio
diretta 5-2400Mhz
Toma coaxial IEC Macho
directa 5-2400Mhz
Presa coassiale IEC Maschio
passante dB 14
Toma coaxial
IEC Macho
de
paso
dB 14
Presa coassiale IEC Maschio
passante dB 18
Toma coaxial
IEC Macho
de
paso
dB 10
Presa coassiale IEC Maschio diretta
5-2400Mhz con passaggio di corrente
Toma coaxial IEC Macho
directa 5-2400Mhz con paso de corriente
Presa coassiale IEC-F Mas-Fem
passante dB 7
Toma coaxial IEC-F
Macho-Hembra de paso
dB 7
Presa coassiale IEC-F
Mas-Fem passante dB 10
Toma coaxial IEC-F
Macho-Hembra de paso
dB 10
Presa coassiale IEC-F
Mas-Fem passante dB 14
Toma coaxial IEC-F
Macho-Hembra de paso
dB 14
Presa coassiale IEC-F
Mas-Fem passante dB 18
Toma coaxial IEC-F
Macho-Hembra de paso
dB 18
Presa coassiale IEC-F
Maschio-Femmina diretta
Toma coaxial IEC-F
Macho-Hembra directa
Presa coassiale F Femmina
passante 5-2400Mhz
Toma coaxial F Hembra
directa 5-2400Mhz
Presa coassiale BNC femmina
Toma coaxial BNC Hembra
Presa TV Connettore IEC Femmina
Toma coaxial TV IEC Hembra
Presa coassiale IEC maschio
Toma coaxial IEC Macho
Presa TV 9,5mm pass./finale
Toma coaxial TV 9,5mm
conexión a través de la linea
Presa TV 9,5mm finale
Toma coaxial TV 9,5mm
conexión directa
